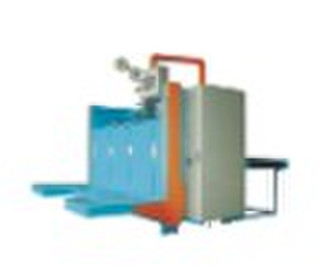

semi automatic carton stitching Machine

carton stitching machine Semi-automatic Stitching Machine VDB 2460 Imported dual-servo drive of high precision reduce mechanical transmission, greatly reduce mechanical fault rateTouch screen operation, easy access to adjust parameters (stitches pitch/number/type/rear baffle)Siemens PLC control systemSingle, double or strengthen stitches can be done at one stroke, can meet customers varied needsOne minute to change the size of stitchesAutomatic counter in the paper feeding, eject in pile for strappingCan stitch on paper box with or without lidAll stitches are made of special steel; computer gong is precisely processed;The machine features rear electric baffle and step motor drive All switches inside control chamber, photoelectric and switches and air presser are from TaiwanAutomatic counter in the latter part; deliver paper boxes in lot as set (1-99) for strappingAutomatic alarm device for lack of stitches Easy operation; only 2 operators are needed from semi-finished product to finished paper boxes Main Specifications: Max paper size 2460*1515mm Min paper size 606*300mm Speed 400stitches/min Stitches 1-99 Type Single/double/strengthen Stitching space 30-100mm Power 4.5 kw Weight 2000kg Height of feeder 900mm Cardboard 3/5 layers corrugated paper Size stitches 2.0mm(0.65-0.75mm)
